Description

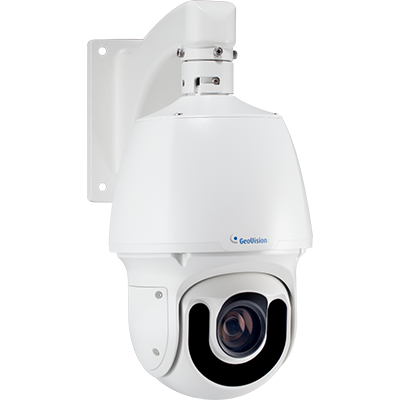

The GV-SD2722-IR is an outdoor network PTZ camera that offers 22x optical zoom and unlimited digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 1920 x 1080 at 60 fps. In low-light environments, night vision is enhanced with its high-power LEDs, which allow up to 200 m (655 ft) effective IR distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro. The GV-SD2722-IR supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.
Wide surveillance coverage is made possible with 360° endless panning and -15 ~ 90° tilting capacity. PTZ functions such as Preset, Auto Pan, and Patrol can be programmed and activated by schedule. The GV-SD2722-IR supports pan/tilt speeds ranging from a fast patrol of 240° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.
Note that the Pendant Tube is an optional accessory.
1.3/2 MP
2MP
Motorized
1/1.8" progressive scan super low lux CMOS sensor
Min. illumination at 0.0005 lux
Triple streams from H.265, H.264 or MJPEG
Up to 60 fps at 1920 × 1080
22x optical zoom and unlimited digital zoom
Intelligent IR
IR distance up to 200 m (655 ft)
Day and night function with IR-cut filter
Two sensor inputs and one alarm output
Wide Dynamic Range Pro (WDR Pro)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP66)
Wide temperature tolerance (-40°C ~ 70°C / -40°F ~ 158°F)
TV-out support
Two-way audio
Built-in micro SD card slot (SDHC/SDXC, Class 10) for local storage
DC 24V / AC 24V
Pan 360° endlessly
Tilt from ‐15° to 90°
Pan and tilt speed of up to 300°/sec and 240°/sec, respectively
PTZ movement (Preset, Auto Pan and Patrol)
PTZ patrol by schedule
